Ceiling Concealed Ducted Split Air Conditioner

Ceiling Concealed Ducted Split Air Conditioner

AIRMYTH floor and ceiling type air conditioners is perfect air conditioning solutions because they allow installation as a floor console, also in a suspended ceiling or semi-concealed in the ceiling.

With the persistent pursuit of the cause and the courage to challenge ourselves forever, we will continue to innovate and create better Water Cooled Screw Chiller, R22, Air Conditioner Spares to thank new and old customers for their love. We have established a set of perfect quality management guarantee system and strong marketing network. Our company treats each customer's request strictly, and respects them.

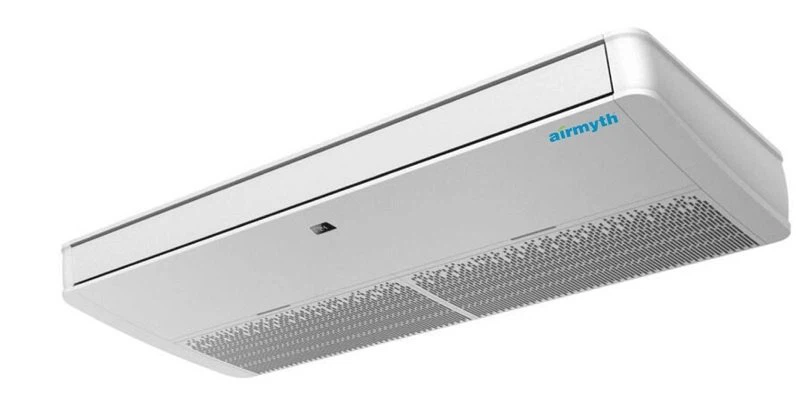

Floor and Ceiling air conditioner

AIRMYTH floor and ceiling type air conditioners is perfect air conditioning solutions because they allow installation as a floor console, also in a suspended ceiling or semi-concealed in the ceiling. Air conditioners have high energy efficiency and have many additional features and modes to make it easier for use. AIRMYTH Floor and ceiling air conditioner adopts electrical expansion valve, ensuring precise flow control, lower modulation noise when EXV is operating. Low noise operations; minimum 36 dB(A). Smoother airflow and less turbulence due to the multi-blade fan and the air guide design. The slim and sleek structure design ensures easy installation. It can be installed into a corner of the ceiling even if the ceiling is very narrow.Due to easy installation, Spave saving and cost saving, floor and ceiling air conditioners are widely used in restarants,small hotels,school,stations,gyms and offices.

1


1.The dual-purpose floor & ceiling AC with a stylish appearance design, and can be easily integrated into various decoration styles to meet the aesthetic needs.

The product can also be installed flexibly according to the actual needs of users. It can be suspended on the ceiling or on the ground. It can be directly exposed and hoisted in places without ceiling decoration.

2


2.Space saving.

For commercial sites, it is necessary to save operating costs as much as possible to maximize benefits. Compared with traditional air conditioners, the floor & ceiling AC not only saves floor space, but also saves the overall ceiling decoration cost. It meets the demand for efficient use of space at high prices and brings savings to users.

3

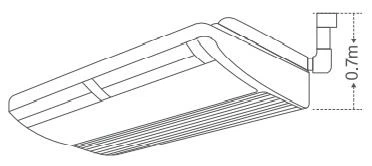

3.Water pump can be customized.The pumping head is up to 700mm.

6


4.Auto swing function,built- in two louver motor,vertical and horizontal air-flow adjustment.


ModelAMFC-18CAMFC-24CAMFC-36CAMFC-48CAMFC-60C
Indoor power supplyV/Ph/Hz220~240V/1Ph/50Hz220~240V/1Ph/50Hz220~240V/1Ph/50Hz220~240V/1Ph/50Hz220~240V/1Ph/50Hz
CoolingCapacityBtu/h1800024000360004800060000
KW5.37.110.51416
InputW130150300260260
RatedcurrentA0.30.71.41.151.15
EERW/W2.612.782.622.662.68
Max. input consumptionW2500200400300300
Max. currentA12.61.11.91.351.35
Indoor air flow(High speed)m3/h7901300170023002300
Indoor noise leveldB(A)44~5239~4844~5257~4857~48
Indoor unitDimension(W*H*D)mm880×635×2051245×680×2471245×680×2471670×680×2471670×680×247
Packing(W*H*D)mm970×725×3011325×770×3251325×770×3251750×770×3251750×770×325
Net/Gross weightkg30/3535/4137/4347/5447/54
Max pressure
MPa4.04.04.04.54.5
Refrigerant typeR410AR410AR410AR410AR410A
Refrigerant pipingLiquid side/Gas sidemmΦ6.35/Φ12.7Φ9.52/Φ15.88Φ9.52/Φ19.05Φ9.52/Φ19.05Φ9.52/Φ19.05
Drainage pipemm2525252525
Standard controllerStandard for remote controller(wired controller for option)
Operation temp
°C16~3216~3216~3216~3216~32
Ambient temp°C18~4318~4318~4318~4318~43
Application aream220-3528-5040-7055~9560~105
Stuffing Quantity(20'/40'/40'HQ)set132/270/30675/165/18975/165/18960/120/12360/120/123
