Chilled Water Ceiling Mounted Horizontal Concealed Fan Coil Unit

Rely on initial, devoting on the food packaging and environmental protection for Air Purifier, Air Cooled Scroll Chiller, Concealed Ducted Air Conditioner. In the production and operation activities of the enterprise, we always insist on safety development as the eternal theme of the enterprise. Let's take advantage of product design, cost control and lower prices, share the resources and create the results of Win-Win.

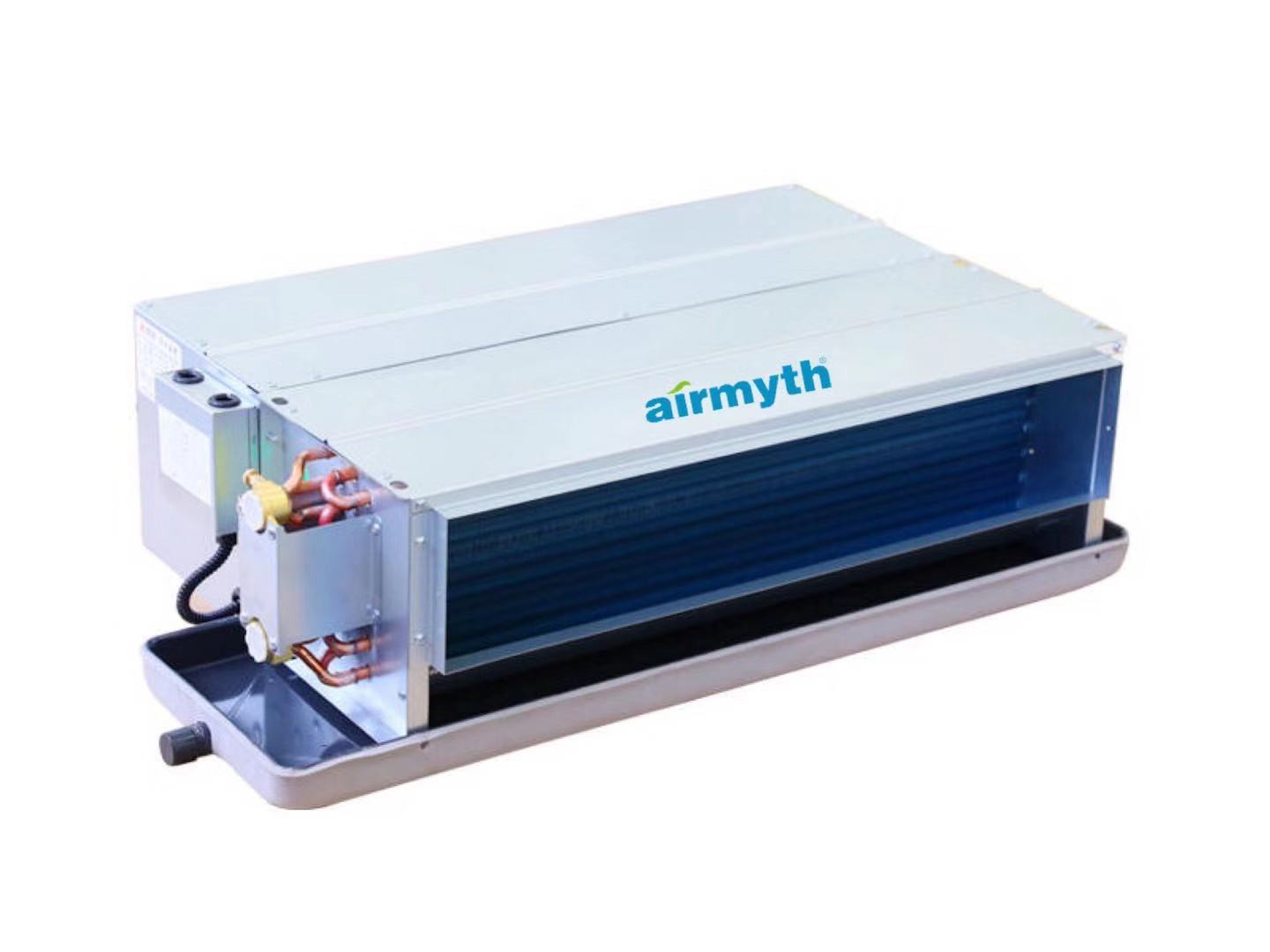

AIRMYTH chilled water ceiling concealed fan coil unit is reliable and economical for tertiary building as hotel guest rooms, offices or light commercial applications.Both DC motor and AC motor is available for AIRMYTH ceiling concealed fan coil unit.

Ultra-thin, ceiling concealed type FCUs, suitable for hot/chilled water system

Centrifugal Fan Well-known brand centrifugal fan with statically and dynamically balanced.

High Efficiency Coil Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 30bar(3Mpa) air pressure.

Drain Pan

Steel drain pan with powder coating for easy cleaning and corrosion resistance, anti-rust. The drain pan is insulated to prevent condensation water.

Drian pump

700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking.

Capacity: 1.8kw-12.6kw

- Air-flow volume: 200CFM-1400CFM

- ESP 12Pa & 30Pa

- Power supply: 220V/1Ph/50Hz

- Air return box optional

- 2-tube system & 4-tube system for selection
