Daikin Compressor 20 Ton 20tr R410A Commercial Central Air Conditioner

We strive to improve the quality of Dehumidifier, Personal Bed Air Conditioner, R410A to guarantee complete benefits and industrial competitiveness of our company. We insist on pioneering and enterprising and innovative, hoping to win market opportunities in innovation and lead future development. In order to enhance our own strength and improve the quality of products, we cooperated effectively with many companies in the development process of the company, realized the sharing of technical resources and achieved good results. Drawing lessons from the advanced experience of today's multinational companies, formulating technology lock-in strategy to maintain our own technology advantage is one of the strategies that our company must master in transnational operation.

Variable refrigerant flow (VRF), also known as variable refrigerant volume (VRV), is an HVAC technology. Like ductless mini splits, VRFs use refrigerant as the cooling and heating medium. This refrigerant is conditioned by a single or multiple condensing units (which may be outdoors or indoors, water or air cooled), and is circulated within the building to multiple indoor units.VRF systems, unlike conventional chiller-based systems, allow for varying degrees of cooling in only certain areas, reducing energy consumption.

VRF system outdoor units have all inverter driven compressors. This means their speed can be varied simply by changing the frequency of power supply to that compressor. As the speed changes, so does the amount of refrigerant delivered, allowing the compressor to operate continuously rather than repeatedly cycle on and off. There are two types of VRF systems: heat recovery and heat pump. The biggest difference is that heat recovery units can heat and cool at the same time, while heat pump units can only heat or cool at once. So, heat recovery systems, which improve efficiency by taking heat from one space and redistributing it to another, are ideal for anywhere you need zone-by-zone control—like a hotel or assisted living facility. And heat pump systems are great for spaces where only one mode of operation is needed, like a bank.As the speed changes, so does the amount of refrigerant delivered, allowing the compressor to operate continuously rather than repeatedly cycle on and off.

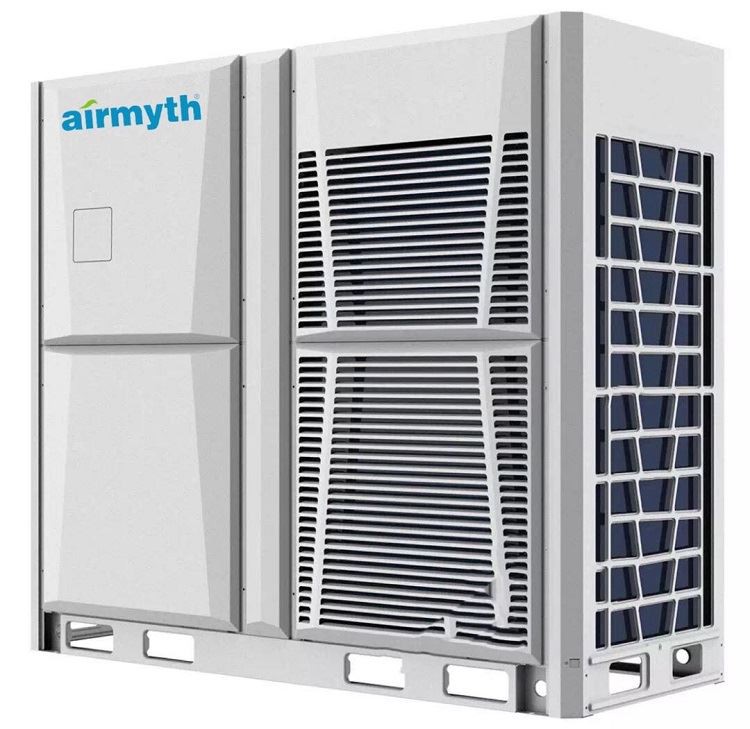

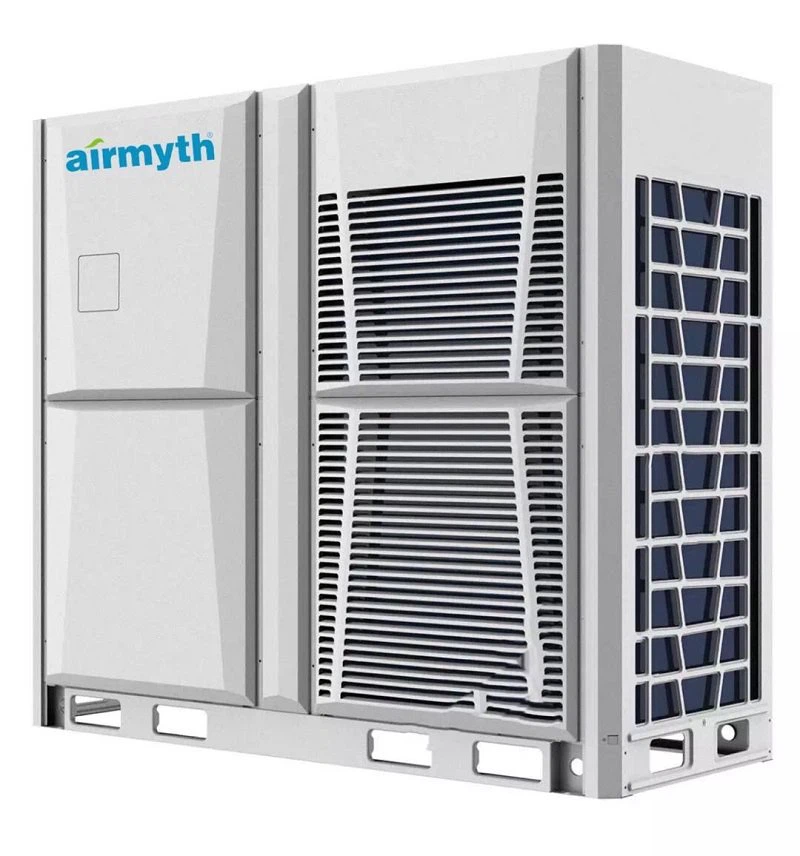

AMV X Multi inverter vrf system

All DC Inverter Technology;All DC Inverter Compressor;Technology of Maximum Torque Control with Minimum Current; 180° Sine Wave DC Speed Varying Technology; Sensorless DC Inverter Fan Motor; Non-polar CAN technology;88HP Max Capacity;

Features:

1.All DC inverter technology to improve compression efficiency

All DC inverter compressor and high-performance high pressure chamber are adopted to reduce loss of overheat and improve compression efficiency from direct intake. Compared with low pressure chamber, the compression efficiency is improved. High-efficient permasyn motor is adopted to provide better performance than traditional DC inverter compressor.

2. Sensorless DC inverter fan motor

Stepless speed regulation ranges from 5Hz to 65Hz.Compared with traditional inverter motors, the operation is more energy-saving.

3.Technology of maximum torque control with minimum current

It can reduce energy loss caused by device winding so as to realize higher efficiency.

4.Low-frequency torque control

It can directly control motor torque, through which fan motor can run at a low speed. Users will feel more comfortable while requirements of the system are also met.

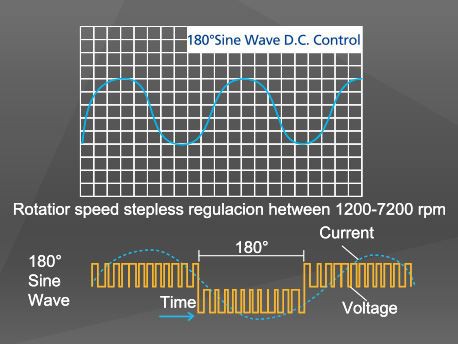

5.180° sine wave DC speed varying technology

It can satisfy various places’ demands for different temperature and is able to save a great deal of electricity and provide users with utmost comfort at the same time.

6.6 basic modules to meet different requirments.128HP max capacity-the largest free combination.

6 basic models.from 8HP to 32HP

Max capacity of single outdoor unit reaches 32HP and max combination capacity is even up to 128HP, in an industry leading level.

7.Non-polar CAN technology to improve communication efficiency

We adopt non-polar CAN communication technology in the industry. CAN communication technology provides quicker system response speed, more convenient installation debugging and more reliable communication data.

8.Wide range of voltage and operation condition

Working voltage range of AMV X system has been improved to 320V-460V, which surpasses the national standard of 342V-420V. For places with unsteady voltage, this system can still be running well.

9.Wider applicable location

AMV X can realize a combination of 4 outdoor unit modules connecting with as many as 80 indoor units. It’s especially applicable for business building or hotels.

10.Refrigerant storage and distribution

The AMV X system is designed without liquid receiver and the excess refrigerant is stored in the piping, which can minimize the refrigerant charging volume and enhance the control accuracy of refrigerant.

11. Long pipe & height difference

1.The total pipe length: 1000 m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.

12. Wide outdoor operation range(380v)

Max.cooling operating temperature is up to 55°C.

Low ambient temperature of cooling mode can be downto-10℃.

13.World famous brand DC Inverter compressor

High efficiency Oilseparate structure,High efficiency DC Fan Motor,Middle partition Improve the efficiency;Reduce quality.Highefficiency Gas-liquid separater,Low noise design of cylinder to reduce noise when exhaust high pressure gas,Low deformationcylinder design to improve the lifetime,High efficiency Movement oil supply mechanismto Ensure oil supplyand reduce noise.

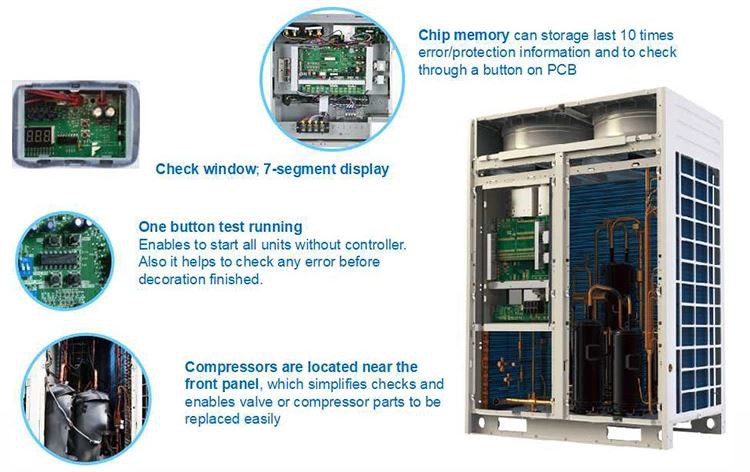

14. Service window on front cover

Thanks to the service window, checking outdoor unit's status and setting is now easy, no need to remove the front cover

15.Certificates.

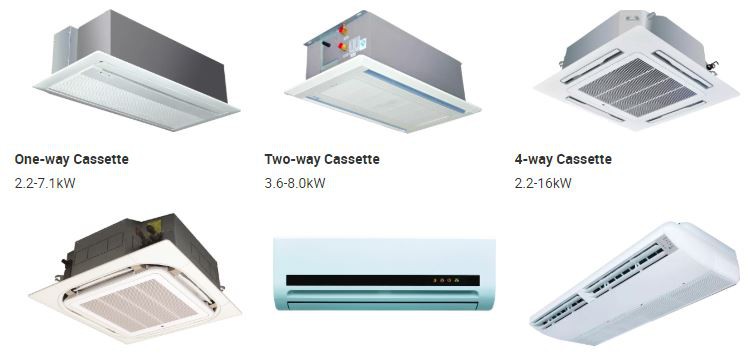

16.More than 11 different indoor unit can be connected with outdoor unit.

It is our goal to strictly control quality and improve efficiency. Our company unremitting efforts to provide customers with Daikin Compressor 20 Ton 20tr R410A Commercial Central Air Conditioner that meet the needs of the market. We are committed to be a reliable partner for our customers in all aspects of our business with excellent quality, superior performance, and consultative services. Our company has established long-term and stable cooperative relations with many retailers and agents. We have won the trust of the majority of customers by the principle of multi variety management characteristics and small profits and high sales.
