Dunham Bush Factory Outlet Fcu 300 Cfm Cassette Type 4 Way Fan Coil Unit

With the tenet of 'meeting customer needs', we stand out from the competition and are at a leading position in the field of Dehumidifier, Air Conditioning Straight Tube, Concealed Ducted Air Conditioner. The core of our company culture is our customers, innovations around the company and society, mutual trust and personal responsibility. Based on our excellent internal humanistic environment and advanced production environment, our company continuously strengthens our research and development capability. By continuous innovation, we will present you with more valuable items and services, and also make a contribution for the development of the automobile industry at home and abroad. We have a perfect quality inspection system to ensure the qualification rate of our products, and some of them have successfully entered the international market.

Fan Coil Units are a highly efficient means of turning a water chiller, heat pump or hot water boiler into an efficient, quiet air conditioning system. These units are an effective solution to provide a comfortable environment for bothcommercial and residential applications. Three models are available in flexible application. The only moving part in the units is the fan, making them ideal for use in offices, hotels and at home.The goal is to obtain the right solution, both technically and aesthetically.

Fan Coil Units in combination with chillers and or boilers can be used to provide a broad range of solutions that can be tailored to local conditions such as climate, primary fuel market or building insulation. In warmer climates or when a building is well insulated, Fan Coil Units with a chiller (2-pipe system) can handle both cooling and heating. Here the chiller is capable of operating in cooling as well as heat pump mode. In more severe climates, a boiler can be added (4-pipe system) allowing optimal cooling in the summer using the chiller, and efficient heating in the winter via the boiler. Adding to the flexibility when designing applied systems applications, is the ability to equip the Fan Coil Unit with an optional electric heater. In situations where it is not economical to operate a boiler and where a chiller in heat pump mode is also not desirable, the electric heater can quickly heat up a room. The combinations made possible by the  AIRMYTH range of Fan Coil Units allow a chiller-based solution to be optimally designed for just about any application and price range.

Air Flow: 200 ~ 1400cfm Cooling Capacity: 2.0KW~12.6KW

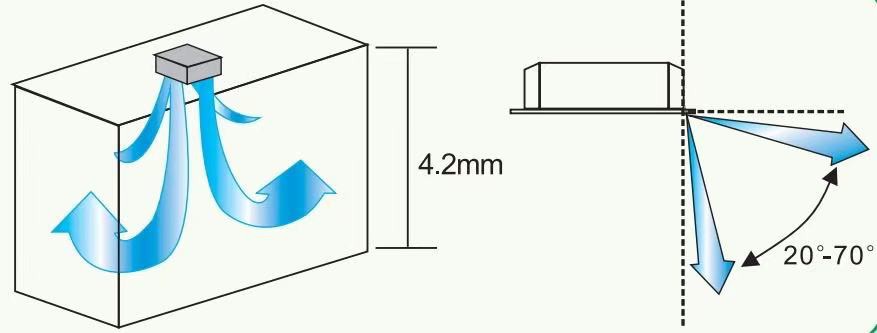

Four way air flowing to make everywhere cooling and heating in the room.

Built in Flow switch to prevent from leakage.

Four pipes is optional.

The 4-pipe unit consists of two separate cooling and heating water coils. Each coil has its own dedicated set of pipes (supply and return) and valve. This type of fan coil can cool and heat at the same time and is not dependent of the actual mode of the building.

Built-In Water Drainage Pump

The built-in pump can lift condensing water up to 1200mm high from the drainage pan.

Fresh Air Intake

Fresh air makes indoor air healthy and comfortable.

Optimized Electric Box Better fire-proof and easy to maintenance.

Features:

1. Wireless remote controller is standard;

2. Wired wall controller is optional;

3. Auto reset, operation mode control; with room sensor & coil sensor;

4. Daily timer or weekly timer.

5.Auto-diagnose, protections and error code disply; jumpers configurations on electronic board

6. Built-in Main PCB: with no function of RS485 ModBus;

7. Main PCB is installed outside of the unit body, then the RS485 ModBus, master-slave network control can be supplied as Optional

Unit Body

Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation.

Panel Assembly

Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing.

Plastic Wheel-Quite running

One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration, low noise on the wheels and motors. Each wheel will be balanced under G0.5mm/s.

Fresh air intake

Fresh air intake is standard

High Efficiency Coil

Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 30bar(3Mpa) air pressure. with 3/4”pipe connections and air bleed vent.

Condensate Drain Pan

In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a condensates draining pump and a safety float.

Drain pump and Float Switch

700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor.

We focus on the future with a pragmatic and an enterprising working attitude, and are dedicated to producing high-quality Dunham Bush Factory Outlet Fcu 300 Cfm Cassette Type 4 Way Fan Coil Unit. We are committed to establishing a wide and convenient distribution network. Our company provides customers with one-stop comprehensive service to improve our service quality, reduce customer costs and help customers grow in the fierce market competition environment.
